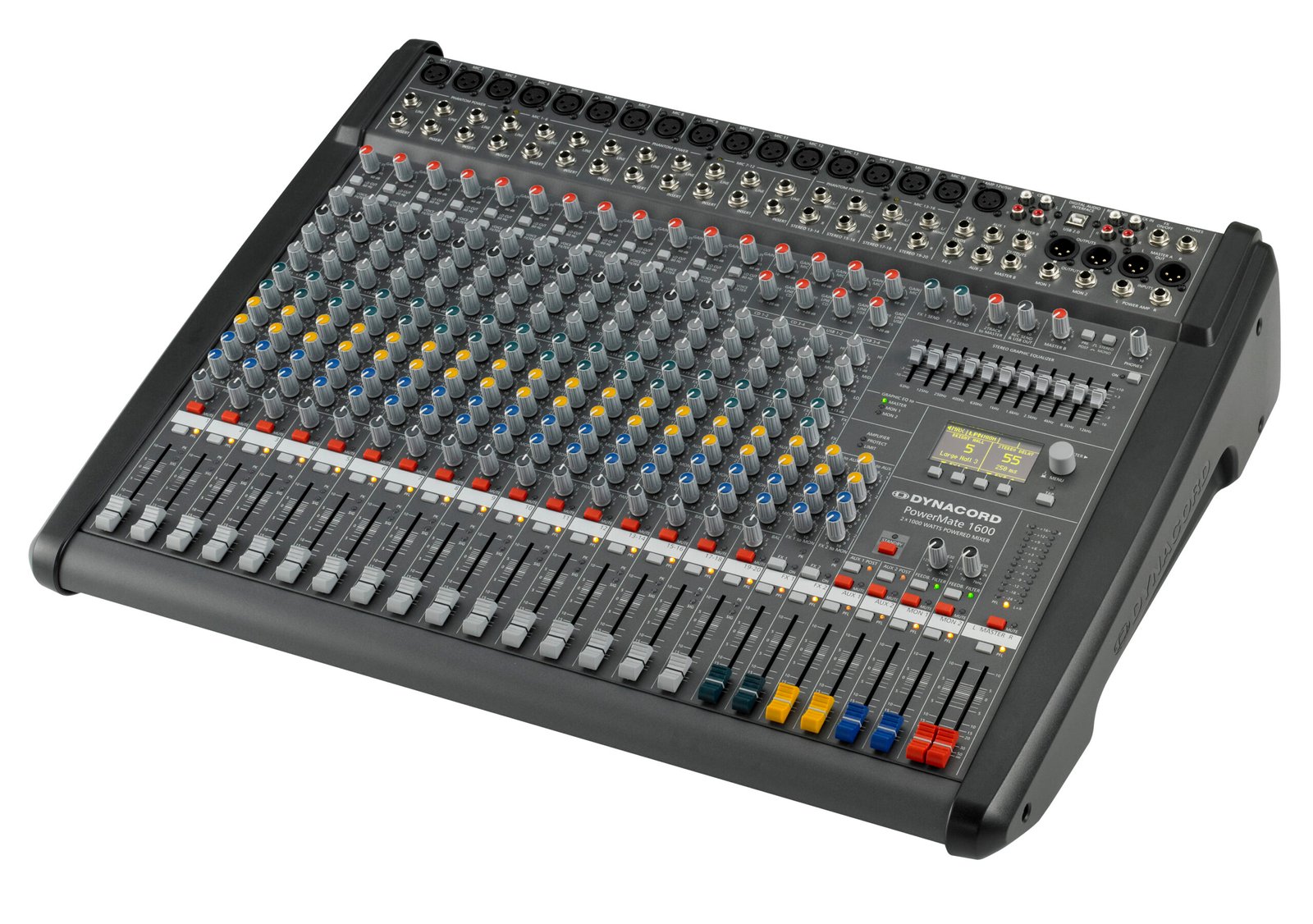

Dynacord PowerMate 1600-3 16-Channel Powered Mixer

(1 customer review)

Channels 12 x Mic/Line
4 x Mic/Stereo Line
Auxiliary 2 x Pre
2 x Post
2 x Pre/Post Switchable
Output Power Max Single Channel, Dynamic-Headroom, IHF-A:
Into 2.66 Ohms: 2 x 1600 W
Into 4 Ohms: 2 x 1250 W
Into 8 Ohms: 2 x 675 W
Max Single Channel, Continuous, 1 kHz, THD = 1%:
Into 2.66 Ohms: 2 x 1350 W
Into 4 Ohms: 2 x 1150 W
Into 8 Ohms: 2 x 650 W
Max Midband, 1 kHz, THD = 1%, Dual Channel:
Into 2.66 Ohms: 2 x 1350 W
Into 4 Ohms: 2 x 1000 W
Into 8 Ohms: 2 x 600 W
Rated, 20 Hz to 20 kHz, THD < 0.5%, Single Channel:
Into 4 Ohms: 2 x 900 W
Into 8 Ohms: 2 x 450 W
Maximum Output Voltage Power Amplifier, 1 kHz, No Load: 74 V rms
Maximum THD @ 1kHz MBW = 80 kHz:
MIC Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005%
Power AMP Inputs to Speaker L/R Outputs: < 0.075%
DIM 30 Power Amplifier, 3.15 kHz, 15 kHz: < 0.05%
IMD SMPTE Power Amplifier, 60 Hz, 7 kHz: < 0.15%
Frequency Response -3 dB, ref. 1 kHz:
Any Input to Any Mixer Output: 15 Hz to 70 kHz
Any Input to Speaker L/R Output: 20 Hz to 30 kHz
Crosstalk @ 1 kHz Amplifier L/R: < -85 dB
Channel to Channel: < -80 dB
Mute- and Standby-Switch Attenuation: > 100 dB
Fader and FX/AUX/MON-Send Attenuation: > 85 dB
CMRR MIC Input, 1 kHz: > 80 dB
Input Sensitivity All Level Controls in Max Position:
Microphone: -74 dBu (155 µV)
Line (Mono): -54 dBu (1.55 mV)
Line (Stereo): -34 dBu (15.5 mV)
CD (Stereo): -34 dBu (15.5 mV)
Power AMP Inputs: +8 dBu (1.95 V)
Maximum Level Mixing Desk:
Microphone Inputs: 21 dBu
Mono Line Inputs: 41 dBu
Stereo Line Inputs: 30 dBu
All Other Inputs: 22 dBu
All Other Outputs: 22 dBu
Input Impedances Microphone: 2 Kilohms
Insert Return: 3.3 Kilohms
2-Track Return & CD Input: 10 Kilohms
All Other Inputs: > 15 Kilohms
Output Impedances Phones: 47 Ohms
All Other Outputs: 75 Ohms
Equivalent Input Noise Microphone Input, A-Weighted, 150 Ohms: -130 dBu
Noise Channel Inputs to Master A L/R Outputs, A-Weighted:
Master Fader Down: -97 dBu
Master Fader 0 dB, Channel Fader Down: -89 dBu
Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -82 dBu
Signal / Noise Power Amplifier, A-Weighted, 4 Ohms: 105 dB
Output Stage Amplifier: Class-D
Equalization LO Shelving: ±15 dB / 60 Hz
MID Peaking, Mono Inputs: ±15 dB / 100 Hz to 8 kHz
MID Peaking, Stereo Inputs: ±12 dB / 2.4 kHz
HI Shelving: ±15 dB / 12 kHz
Master EQ 11-Band (63 Hz, 125 Hz, 250 Hz, 400 Hz, 630 Hz, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 12 kHz): ±10 dB / Q = 1.5 to 2.5
Filter LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct.
Voice Filter, Mono Inputs: Switchable
Feedback Filter, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB
Speaker Processing: LPN, Switchable
Effects Type: Dual Stereo 24/48-Bit Multi-Effects Processors
Effects Presets: 100 Factory + 20 User, Tap-Delay
Remote Control: Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio Channels: 4 x Inputs / 4 x Outputs
AD/DA Conversion: 24-Bit
Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
PC Interface: USB 2.0, Female Type-B
Peak Display: 6 dB Before Clip
MIDI Connectors 1 x 5-Pin DIN, Input / Output
Power Control Output: Adjustable Longterm RMS Limiter
Protection Mixer Outputs (Relay Controlled): MON 1, MON 2, MASTER A
Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On Delay, Back EMF
Switching Mode Power Supply (µC controlled): Inrush Current Limiters, Mains Over/Undervoltage, Mains Overcurrent, High Temperature
Cooling Continuous Speed-Controlled Fans
Phantom Power Switchable In Groups: 48 VDC
Power Requirements SMPS with Auto Range Mains Input: 100 to 240 VAC, 50/60 Hz
Power Consumption At 1/8 Maximum Output Power, 4 Ohms: 450 W
Safety Class I
Ambient Temperature 40 to 105°F / 5 to 40°C
Dimensions 26.1 x 6.5 x 22.5″ / 663.5 x 164.5 x 571.5 mm (with Lid)
Weight 33.1 lb / 15 kg (without Lid)
37.5 lb / 17 kg (with Lid)
Categories: , , ,
Add to Wishlist
Add to Wishlist

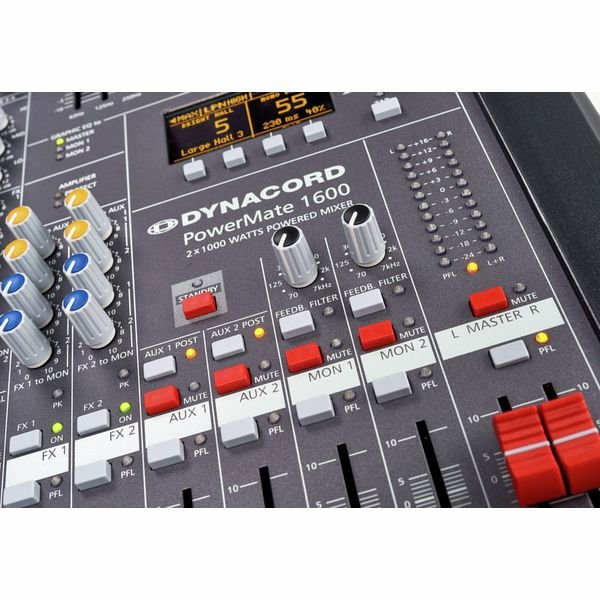

Dynacord Power Mixer Overview

The PowerMate3 16-Channel Powered Mixer from Dynacord features 12 mic/line and four mic/stereo-line channels. It also has six auxiliary ports, two of them switchable pre/post fader. Two effects processors offer 100 factory presets, including the already legendary PowerMate reverbs. Each preset can be edited and stored to 20 user memories.

A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels. The amplifier features 2 x 1000W at 4 Ohms (RMS).

Steinberg Cubase software
Efficient and lightweight with modern switching mode power supply technology and a class‑D output stage
Slim housing protected by a rugged plastic lid with integrated handle for easy transportation
Optional speaker protection allows limitation of long-term power without giving up dynamics
Made in Germany
