Description

• Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
• 2 GROUP Buses + 1 Stereo Bus
• 2 AUX
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Optional Rack Mount Kit RK-MG12 Available
• Metal chassis
• 308 mm x 118 mm x 422 mm (9.6″ x 2.8″ x 11.6″)
• Net Weight: 4.0 kg (8.8 lbs.)

A Real Workhorse Mixer!

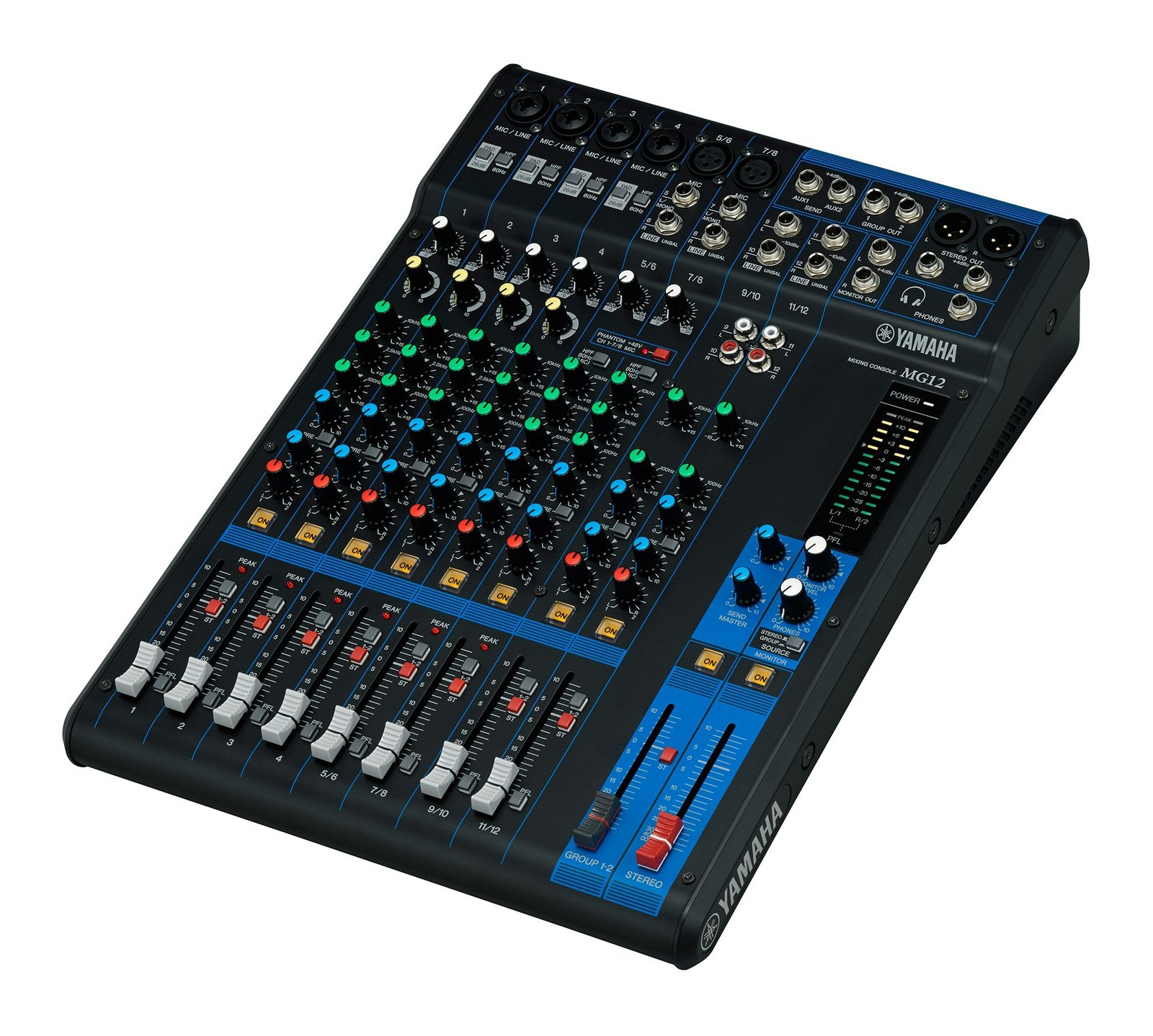

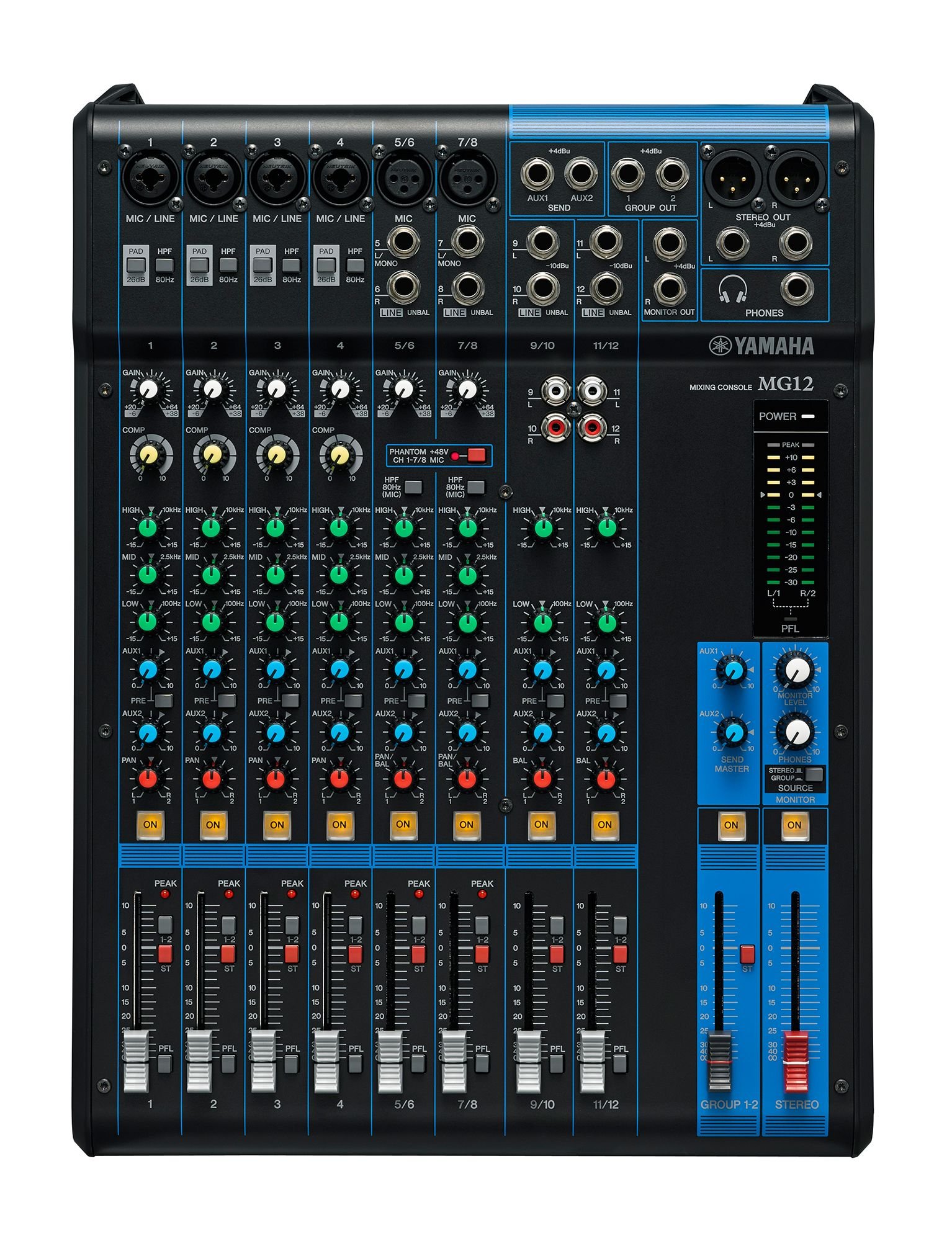

Rich with features and delivering outstanding sound quality, the Yamaha MG12 analog mixer is an excellent choice for small-to-medium portable mixing rigs. The MG12’s high-quality op-amp ensures your mix stays transparent and articulate. Its crystal-clear D-PRE preamps capture every nuance from your microphones, delivering rich lows and smooth, musical highs.

With switchable phantom power, pad switches, one-knob compressors, 3-band EQ, high-pass filters, and LED metering, the MG12 is designed to handle whatever you throw at it. Borrowing many state-of-the-art features from Yamaha’s higher-end consoles, the MG12 is truly built to perform reliably — every time.

Yamaha MG12 Analog Mixer at a Glance

• D-PRE discrete Class-A mic preamps deliver clean, natural sound

• One-knob compressors for quick and effective dynamics control

• 3-band EQ and high-pass filters for precise sound shaping

• High-quality op-amp ensures transparent, accurate sound reproduction
