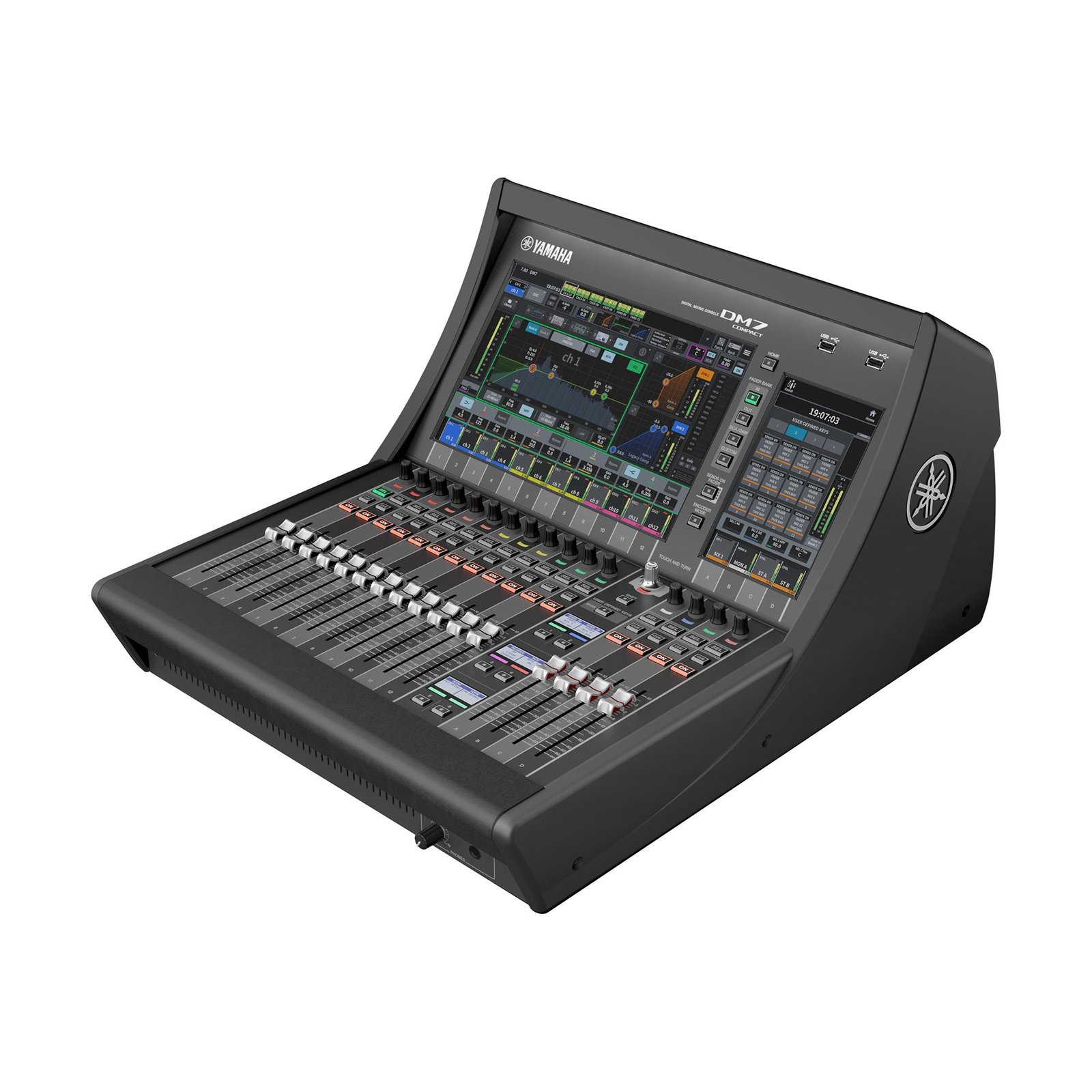

Functional and attractive layout

Strip lights illuminate fader surfaces to give engineers an advantage in darkened live venues. However, conventional mixing consoles have lacked a sense of uniformity with the strip lights often protruding unattractively. With the DM7 series, we designed the side pad connecting the strip light and fader surfaces with a smooth curve, creating a sense of unity. The shape of the side pad prevents light leakage from the strip light while serving as a guard to prevent accidental contact with USB memory sticks, knobs, etc.

Consistent user experience

Mixing engineers must set up, and create the best sound possible within a tight timeframe, but because the environment and equipment used varies from venue to venue, a console that is difficult to operate can increase workload. The DM7 series layout of buttons and knobs, functions, and graphics all adopt interface standards from other Yamaha series mixers for a familiar feel.

The DM7 series also inherits the smooth lines of the RIVAGE PM, CL, and QL consoles achieving a consistent design in terms of both operability and modeling.

Compact and lightweight construction for easy setup and transport

Ease of transport and a fast setup are among the most important features for mixing consoles in most environments and applications. With the DM7 series, the angle of the display, the pitch of the faders and buttons, and the position of the strip lights have all been carefully designed to maintain the high operability and visibility of the display in a compact chassis. The DM7 Compact can also be rack-mounted by removing the side pads, making the most of limited space at live sites.
