Description

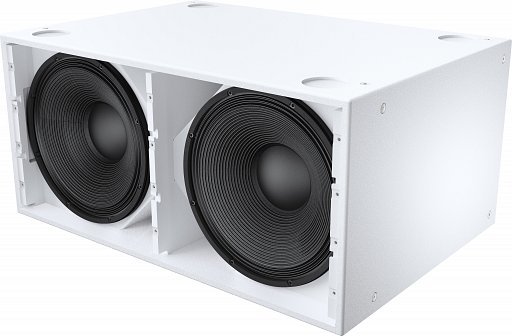

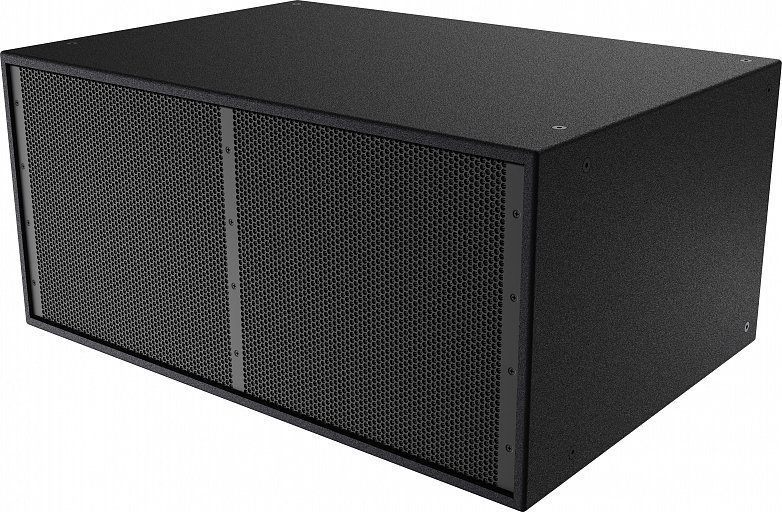

The X-Line Advance X12i-128 subwoofer produces the greatest low-frequency impact and performance EV has ever developed. It is truly a state-of-the-art compact cabinet that delivers more LF output in a smaller footprint than other subwoofers available today.

In addition to its extremely high output capability, the X12i-128 is designed to acoustically match seamlessly with any X-Line Advance top cabinet as a ground stack subwoofer or as a flown subwoofer. Electro-Voice PREVIEW Loudspeaker Software quickly and accurately calculates array configuration data and coverage predictions. The software also provides information for the creation of steered/shaped subwoofer arrays. Optimized cardioid settings that can supply up to 30 dB of rejection are an option for maximum versatility in a variety of applications. The X12i-128 is a premium solution for fixed install applications. The enclosure is constructed of weatherresistant plywood. The indoor install models have interlocking feet for ground stack applications and are finished with a polyurea coating for enhanced durability. In addition to the indoor install models, the IP55 rated fiberglass models are fully weatherized for use in direct exposure outdoor environments. All models utilize stainless steel grilles and hardware for maximum corrosion resistance. The enclosures, available in both RAL9005 black and RAL9003 white, have four M10 hard points on each side of the enclosure for mounting to structural framing. There are four additional M10 hard points on the top of the enclosure for suspending a single subwoofer. The input panel provides dual high-current Phoenix style terminal blocks for ease of connectivity. The input panel is fully weatherized, with multiple gland nut sizes to accommodate a range of cable sizes. The X12i-128 offers superior configuration flexibility for easier system design and setup, making it the standout subwoofer choice for any larger-format installed audio application.
