Description

Cable Material K 7 x 0,14

Our cable material has been developed by Neumann and is exclusively produced for Neumann by highly qualified manufacturers. All microphone cables have a counter wound double helix copper shielding, assuring a particularly high degree of coverage (95%). HF rejection is exceptionally good, flexibility of the cable excellent.

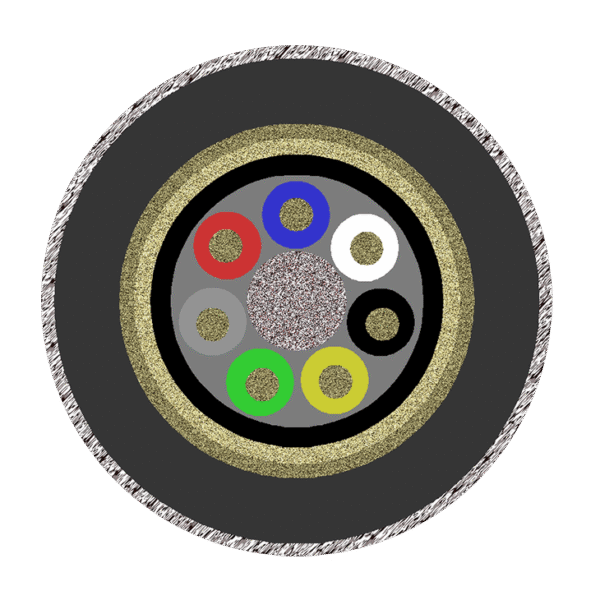

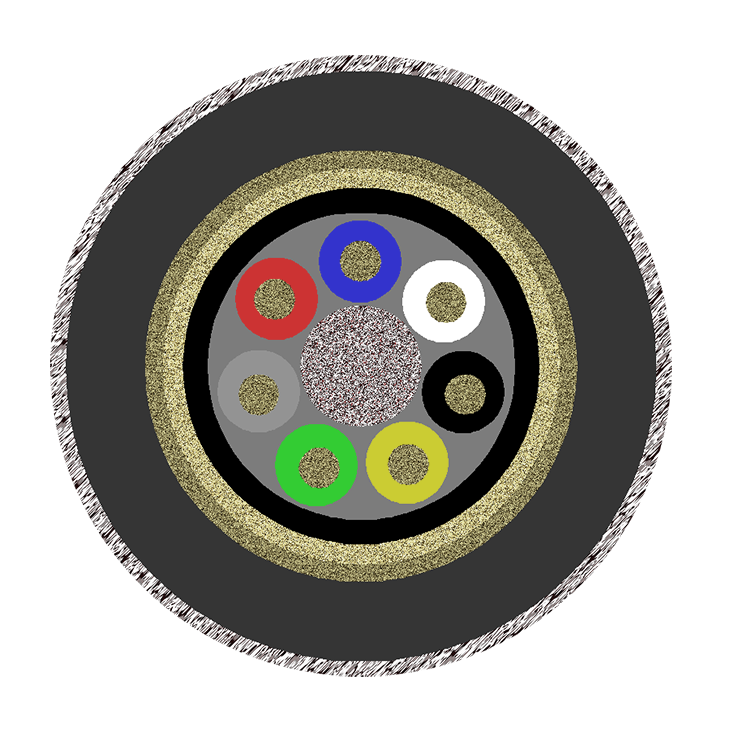

Construction:

• 7 conductors 0.14 sqmm copper wire 72 x 0.05 mm
• Insulation special thermoplastic
• Shielding: 2 layers of counterwound bare copper wire
• Jacket special pvc matte charcoal-gray and round
• Printing “Georg Neumann GmbH Berlin – Made in Germany”
• Overall diameter: 5.0 mm

Price on request.

Technical Data
Conductor resistance: < 138 Ohms/km
Insulation resistance: > 20 MOhms x km
Capacitance core/core: 110 nF/km ( 1 kHz)
Test voltage core/core: 1.2 kV
Test voltage core/shield: 0.6 kV
Temperature range: – 20° C to + 70° C
