Description

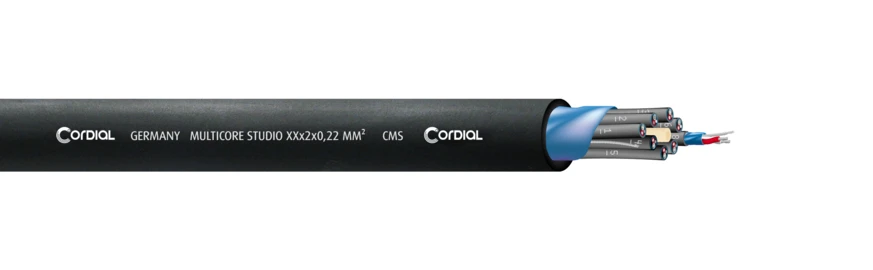

CMS Multicores are the perfect solution for studio installations. Due to the foil shielded conductor pairs (with drain wire) and the overall foil shielding, both external interferences and interferences between the conductor pairs are prevented. With a conductor area of 0.22 mm², they transmit the signals safely from the recording room to the control center.
The CMS Multicores are available with 4, 8, 12, 16, or 24 channels.
PRODUCT INFORMATION
| Jacket | PVC |
TECHNICAL FACTS
| Conductor area | 0.22 mm² |
| Composition of cores | 12 twisted pairs (16-channel multicore configuration) |
| AWG | AWG 24 |
| Shielding (Overall) | Foil (PT/AL) with drain wire, 100% coverage |
| Pair shielding | Foil (PT/AL) with drain wire, 100% coverage |
| Composition of conductor | 7 × 0.20 mm |
| Material | tinned copper |
| Conductor isolation | PE (Polyethylene) |
| Conductor resistance | 87 Ohm/km |
| Capacity cond.-cond. (pF/m) | 61 pF/m |
| Category | Multicore |
| weight bulk cable | 204 g/m |
| diameter | 14.3 ± 0.5 mm |
| test voltage | 500 V eff. |
