Description

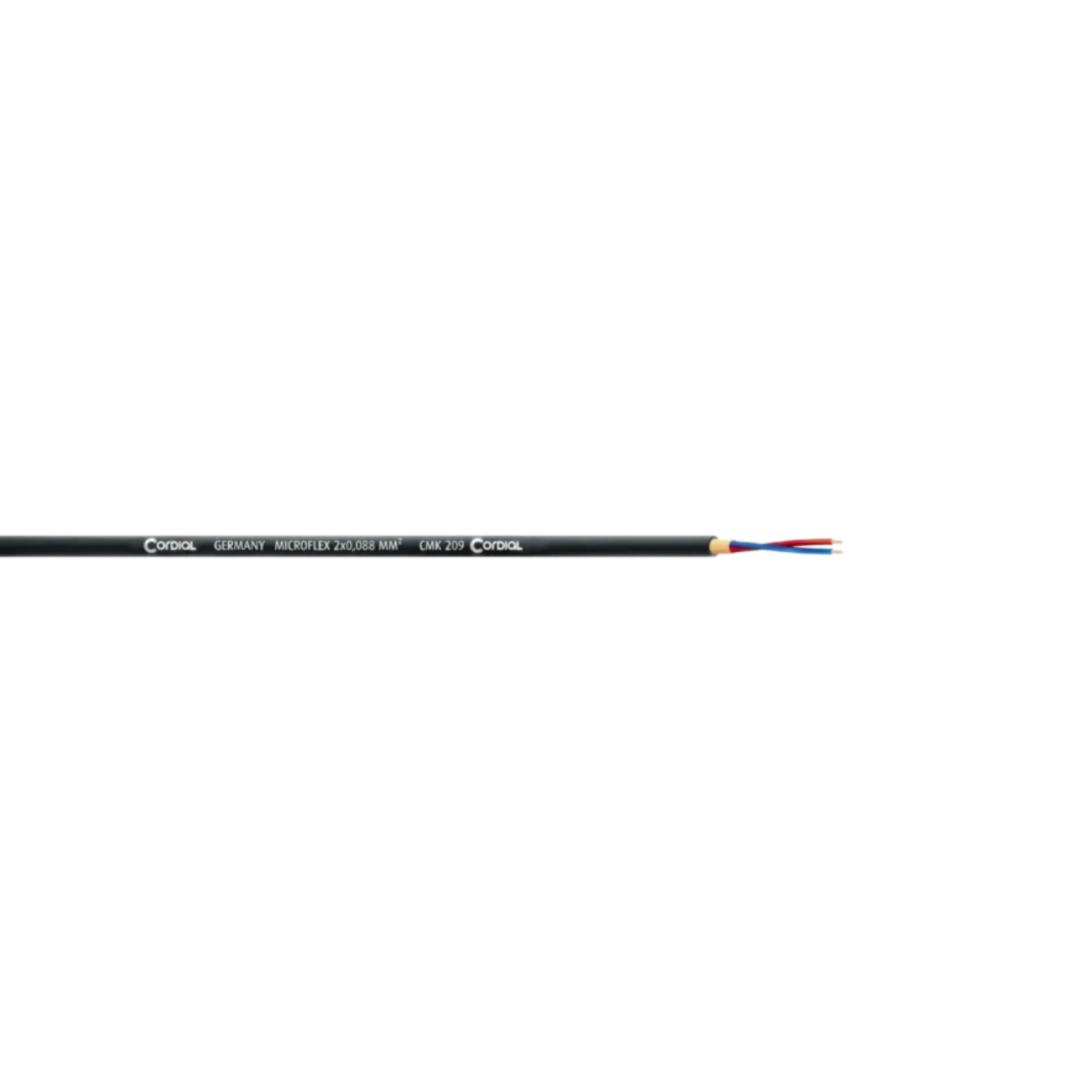

The CMK 209 is an ultra-thin, highly flexible miniature mic cable with a thin cross-section. Two Kevlar Aramid fiber strands are integrated in the cable, adding tensile strength and enhancing torsional stiffness. Suitable for hanging mics (e.g. choir miking, lecterns) or the laying through narrow cable ducts. Can also be used as a spare cable for clip-on mics.
PRODUCT INFORMATION
| Jacket | PVC |
TECHNICAL FACTS
| Conductor area | 0.088 mm² |
| Composition of cores | 2 cores twinned, Reinforced by two Aramid (“Kevlar”) threads |
| AWG | AWG 28 |
| Shielding | spiral wound copper wire screen |
| Composition of conductor | 7 x 0.127 mm |
| Material | bare copper |
| Conductor isolation | PP |
| Conductor resistance | < 217 Ω / km |
| Capacity cond.-cond. (pF/m) | 54 pF / m ± 8 % |
| Category | Microphone |
| weight bulk cable | 13 g/m |
| diameter | 3 mm |
| test voltage | 500 V eff. |
